In high-pressure fluid transfer systems—from automotive cooling loops to heavy machinery hydraulics—the effectiveness of a hose clamp depends heavily on uniform pressure distribution. Among industrial fasteners, the German Type Worm Drive Hose Clamp (DIN 3017) is renowned for its exceptional seal integrity and smooth surface design. While the worm screw and housing grab immediate attention, a foundational manufacturing step dictates overall performance: the precision band coiling and rounding process.
Why Precision Coiling Matters
Transforming flat, high-tensile steel strip into a perfectly circular clamp band is far more complex than simple bending. Stainless steel inherently exhibits elastic memory (springback). If the coiling process lacks micro-meter precision, the resulting ring will develop subtle ovality or flat spots. Under load, an unevenly coiled clamp creates localized pressure points, increasing the risk of fluid leakage or damage to soft silicone and rubber hoses.

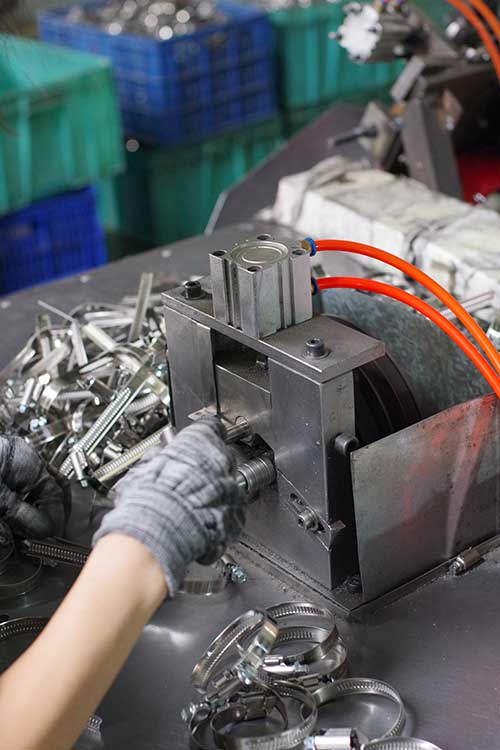

Behind the Scenes: Our Automated Coiling & Forming Process
At our manufacturing facility, state-of-the-art multi-stage coiling technology converts raw steel strips into flawless round bands:
Precision Strip Feeding & Tensioning: Premium grade stainless steel (e.g., AISI 304 / 316) or high-grade galvanized steel is fed through automatic tension controllers to eliminate material distortion prior to shaping.
Multi-Roll Progressive Bending: Rather than forcing a single sharp curve, the steel strip moves through a series of precision CNC rollers. This progressive forming technique gradually curves the band, compensating for springback and preserving internal material structure.
Smooth-Edge & Non-Perforated Protection: For German-type clamps, edges are slightly raised or rolled outward during coiling, while the inner surface remains entirely smooth. This ensures the band glides seamlessly around the hose without cutting into the rubber outer wall.
Automated Roundness Inspection: In-line optical sensors continuously monitor the radius and circular profile of coiled bands. Any variance beyond strict engineering tolerances is automatically rejected before moving to housing assembly and welding.
Core Benefits for Industrial Applications
360-Degree Uniform Clamping: Exceptional roundness guarantees an even, leak-proof seal across the entire circumference of the hose connection.
Extended Hose Lifespan: Smooth coiling with Burr-free rolled edges prevents hose abrasion, even under severe temperature fluctuations and continuous vibration.
Consistent Torque Output: Perfect alignment simplifies screw engagement, ensuring smooth tightening and high ultimate failure torque.
Every German Type Worm Drive Hose Clamp we produce reflects our dedication to zero-defect manufacturing. Contact our sales team today to request samples or learn more about our custom OEM hose clamp solutions!
