Band width: 1/2” (12.7mm)
Band thick: 0.024” (0.6mm)
Screw size: 5/16” (7.9mm)
Material: W1, W2, W4
Free running torque: 6 in-lbs (0.7 Nm)
Suggested installation torque: 35 in-lbs (4 Nm)

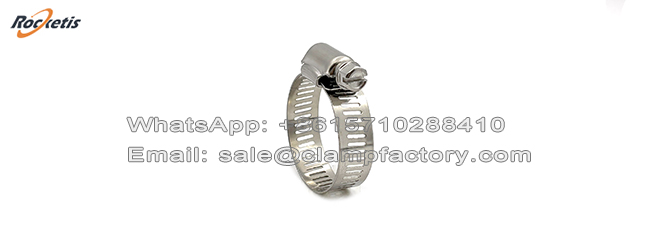

As a professional China Clamp Factory, We produce kinds of hose clamps. Our American type perforated band hose clamps are engineered for high-sealing pressure and reliability. Featuring a smooth perforated band and a rugged housing, these clamps ensure a secure fit for automotive, industrial, and marine applications. Manufactured strictly to SAE J1508 standards for superior torque performance.
Key Specifications
Band Width: 12.7mm (1/2") or 14.2mm (9/16")
Material: W2 (SS band/housing, carbon steel screw), W4 (All SS304), W5 (All SS316)
Standard: Compliant with SAE J1508
Band Thickness: 0.6mm - 0.7mm
Screw Head: 5/16" hex head with slotted/phillips drive
Why Choose Our China Clamps?
Anti-Corrosive Performance: Premium grade stainless steel ensures long-term use in harsh marine or chemical environments.
Smooth Edges: The band edges are specially treated to prevent hose damage during installation and high-pressure cycles.
High Locking Torque: Precision-engineered screw and housing prevent the band from slipping or stripping.
Versatility: Ideal for silicone, rubber, and PVC hoses.
Applications:

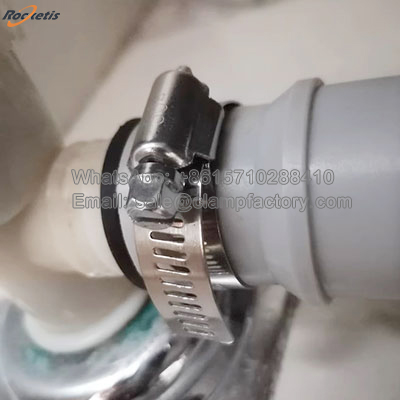

Automotive: Turbocharger hoses, coolant lines, and air intake systems.
Industrial: Agricultural irrigation, chemical processing, and fluid handling.
Marine: Saltwater-resistant sealing for boat engines and bilge pumps.
How to Install:
Select the correct clamp size based on the hose's outer diameter (OD).
Slide the clamp over the hose before connecting it to the fitting.
Position the clamp at least 1/4 inch from the end of the hose.
Tighten the hex screw using a socket wrench or screwdriver until the connection is leak-proof (avoid over-torquing).
FAQ of Our China Clamp
Q1: What is the difference between American type and German type clamps?
A: American clamps use a perforated band (holes through the band), which provides a very strong mechanical grip. German clamps use a non-perforated embossed band to protect soft hoses from extrusion.
Q2: Can I get these clamps in 316 Stainless Steel for marine use?
A: Yes, we offer W5 grade (Full SS316) specifically for high-salinity environments to ensure maximum corrosion resistance.
Q3: Is custom branding (logo) available on the clamp housing?
A: Absolutely. As a professional China clamp factory, we support OEM/ODM services, including logo stamping and custom packaging for bulk orders.
Q4: Do these clamps meet SAE standards?
A: Yes, our American perforated hose clamps are manufactured and tested according to the SAE J1508 standard to ensure torque and material consistency.
