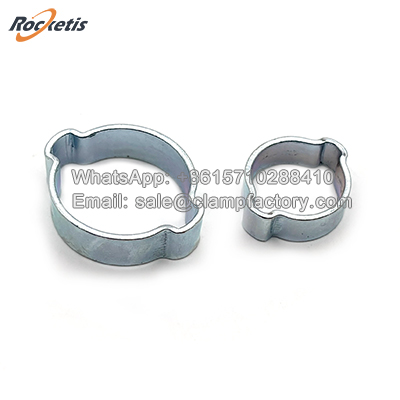

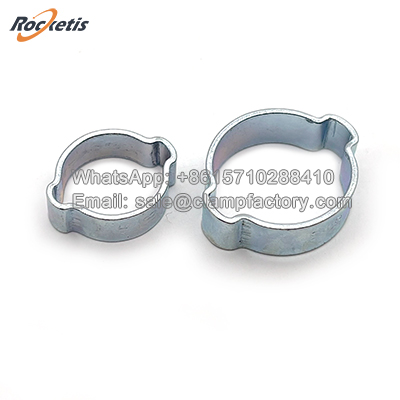

Zinc Plated Double Ear Hose Clamp

Zinc-coated twin-lobe hose clamps are lightweight, cost-effective fasteners engineered for quick installation with consistent clamping force. Boasting a unique dual-lobe structure and no threaded or worm drive components, these clamps utilize a straightforward yet highly functional spring steel build to deliver a secure seal in low to medium pressure systems. The zinc coating delivers fundamental corrosion resistance, making the clamps ideal for standard industrial and general utility applications.

Features of double ear hose clamp

Material & Finish:

Base Material: Typically made from spring steel.

Finish: The clamp is coated with a layer of zinc plating (often via electroplating). This provides a sacrificial barrier against rust and corrosion in standard, non-severe environments (e.g., indoor use, protected engine bays). It is not suitable for prolonged exposure to saltwater, strong chemicals, or highly corrosive atmospheres.

Screw-Less, Spring-Action Design:

The clamp functions as a pre-tensioned circular spring.

It applies a constant, preset clamping force that can accommodate minor changes in hose diameter due to temperature fluctuations, helping to maintain the seal.

Contains no moving parts like screws or worms, making it inherently resistant to loosening from vibration.

Double-Ear Mechanism:

The defining feature is the two opposing "ears" or "lugs" protruding from the clamp band.

These ears are squeezed together using specialized pliers (e.g., hose clamp pliers, pinching pliers) to open the clamp for installation over a hose and fitting.

Once the pliers are released, the inherent spring tension of the steel forces the ears apart, contracting the band tightly around the hose to create the seal.

Comparing Double Ear vs. Single Ear Hose Clamps: Which is Right for You?

When selecting the ideal ear clip for your application, understanding the mechanical differences between Single Ear and Double Ear designs is crucial for ensuring a leak-proof seal.

Adjustment Range & Tensioning

Double Ear Clamps: The defining feature of the "2-ear" design is its extended adjustment range. The two ears allow the clamp to accommodate larger variations in hose outer diameters (OD). As you crimp both ears, the clamp provides a more dynamic "spring" effect, which is superior at maintaining tension during thermal expansion and contraction of the hose.

Single Ear Clamps: These offer a more limited diameter range. They are best suited for applications with precise, consistent hose sizes where space might be restricted.

Q&A of 2-Ear Hose Clip

Q: Why use a double ear clamp instead of a worm gear clamp?

A: Double ear clamps provide a more compact, tamper-proof connection and more consistent radial pressure. They are ideal for high-vibration environments where a worm gear screw might loosen over time.

Q: Do I need special tools to install 2-ear clips?

A: Yes, a pair of ear clamp pincers (standard or side-cut) is required to crimp the "ears" for a permanent seal.

Q: Are these ear clamps reusable?

A: No. Ear clamps are designed for permanent installation. Once crimped, they must be cut off to be removed, ensuring the integrity and safety of the connection.
