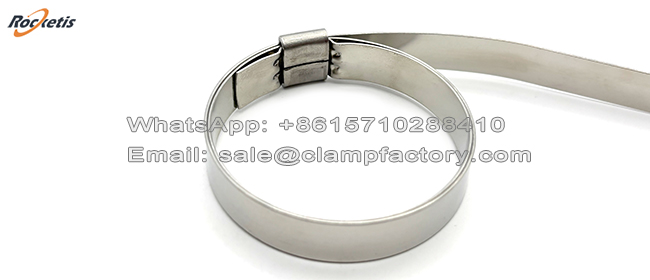

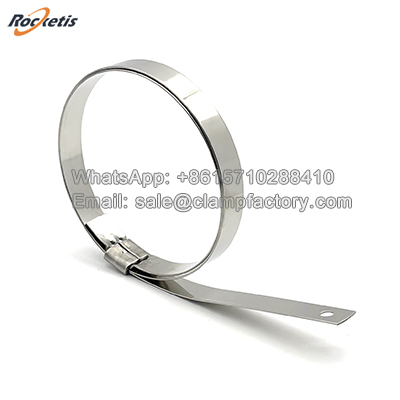

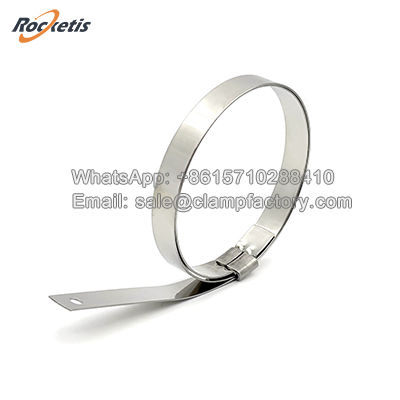

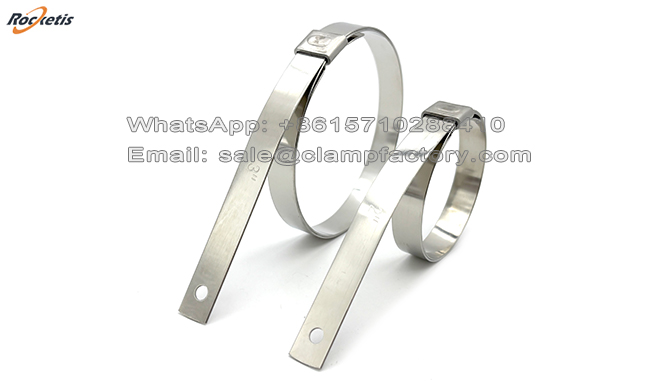

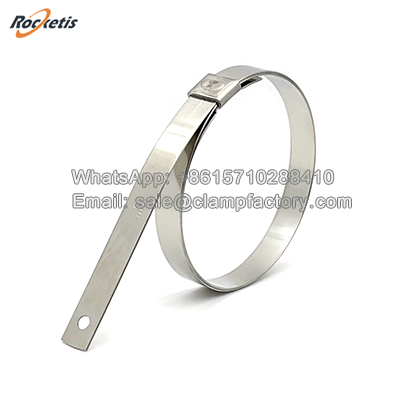

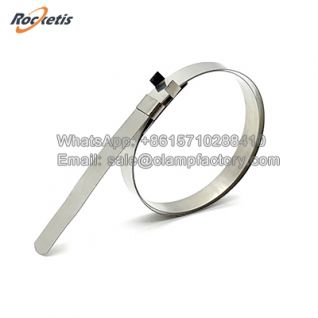

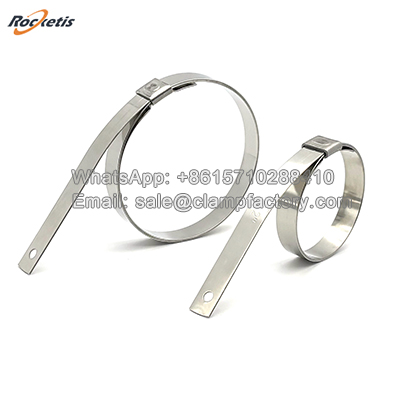

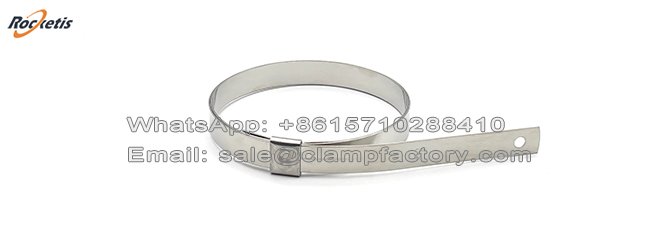

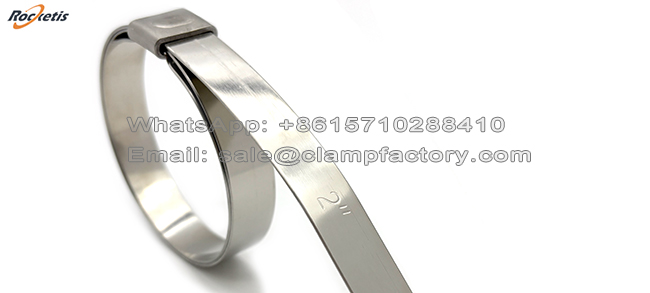

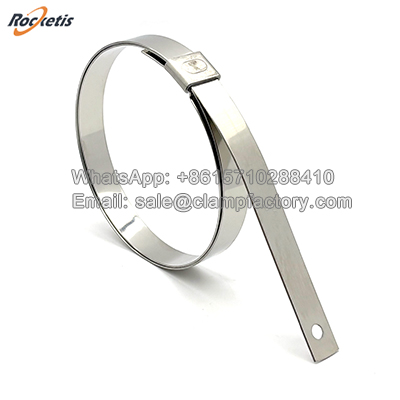

Heavy Duty Stainless Steel Punch Lock Clamp

The stainless steel punch lock clamp (also commonly known as a punch style clamp, push-pull clamp, or pinch clamp) is a highly efficient, self-locking fastening device designed for rapid, tool-free installation and removal. Characterized by its intuitive "pull to tighten, push to release" mechanism, it is the preferred choice for applications requiring frequent serviceability, moderate sealing pressure, and a secure, low-profile hold.

Operating Principle of punch lock clamp

Material: Constructed from spring-tempered stainless steel (typically AISI 301, 304, or 316), providing excellent corrosion resistance, durability, and a consistent spring-back effect.

Mechanism: The clamp consists of a perforated band and an integrated locking head with a one-way pawl.

Tightening: The user simply pulls the free end of the band ("punch" action) through the head. The internal pawl engages the band's perforations, allowing incremental tightening but preventing any backward slippage.

Release: To remove, the user pushes the two small, spring-loaded release levers (or tabs) on the head. This disengages the pawl, allowing the band to be pulled freely backward and the clamp to be opened

Advantages of punch lock clamp

Extreme Speed & Tool-Free Operation: The primary benefit. Enables instant installation, adjustment, and removal without any tools (screwdrivers, wrenches). This dramatically reduces maintenance time and is ideal for assemblies requiring frequent access.

Secure, Vibration-Resistant Lock: The positive pawl-and-perforation engagement provides a reliable hold that is highly resistant to vibration-induced loosening. Once engaged, it will not back off.

Consistent & Repeatable Tension: The spring-tempered steel ensures a uniform clamping force and allows for repeated use without significant loss of performance.

Wide Adjustment Range: The long, perforated tail allows for a broad range of diameters, accommodating dimensional tolerances in hoses and fittings.

Low-Profile & Clean Design: The integrated locking head is compact and presents a neat, professional appearance without protruding screw mechanisms..

FAQ of Stainless steel punch lock clamp

Q: What is the main advantage of center punch clamps over worm gear clamps?

A: Center punch clamps provide a permanent, tamper-proof seal with significantly higher tensile strength. They are specifically designed for large-diameter, high-pressure industrial hoses where a worm gear clamp might fail or loosen due to vibration.

Q: Are these clamps reusable?

A: No, center punch clamps are permanent fasteners. Once the center lock is punched, the clamp cannot be loosened or reused. This ensures maximum security and prevents accidental release.

Q: Can I use these clamps for chemical or marine environments?

A: Yes, we recommend our 316 Stainless Steel (W5) center punch clamps for marine and chemical applications, as they offer the highest level of corrosion resistance against saltwater and harsh chemicals.
