Material: carbon steel with vinyl coat

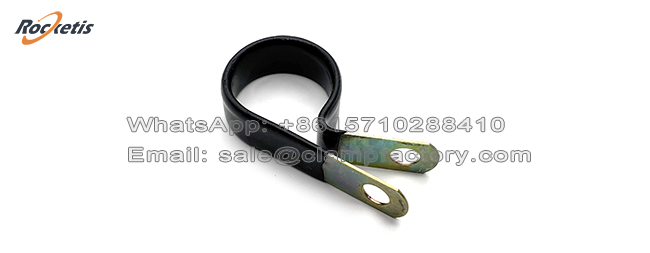

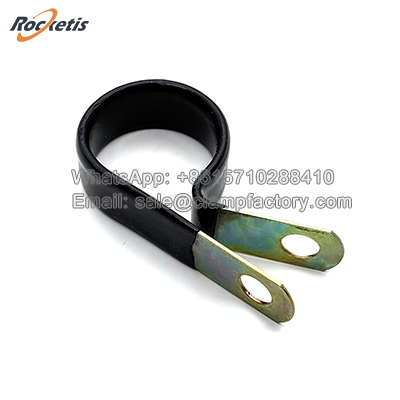

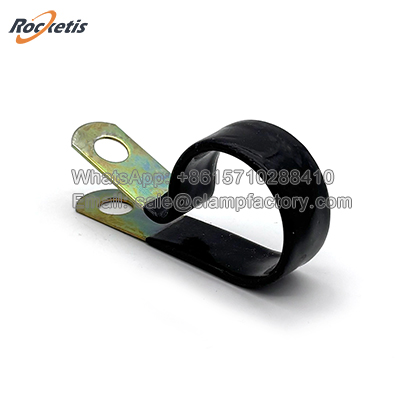

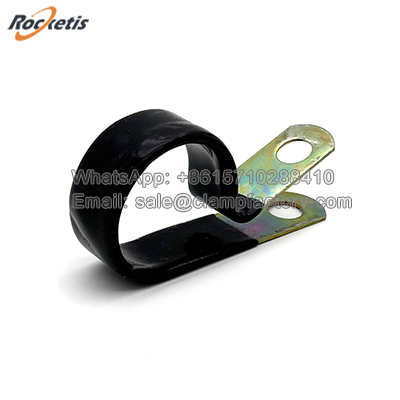

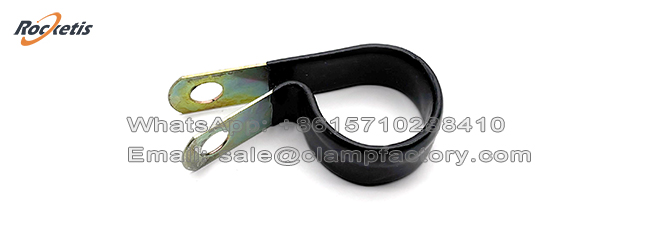

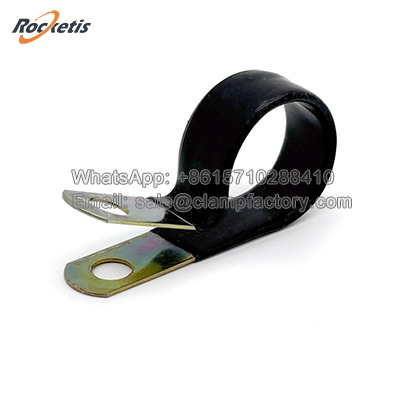

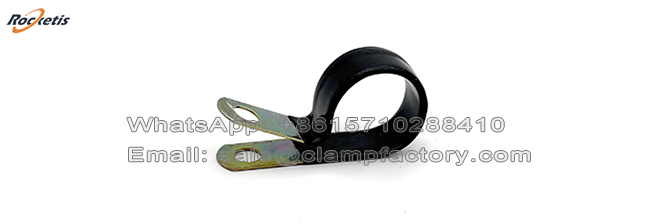

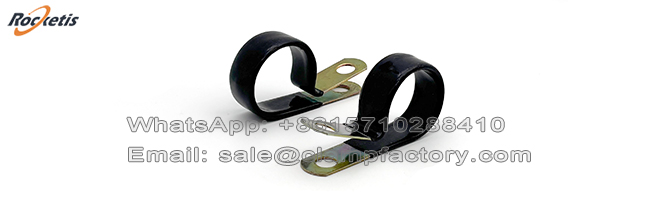

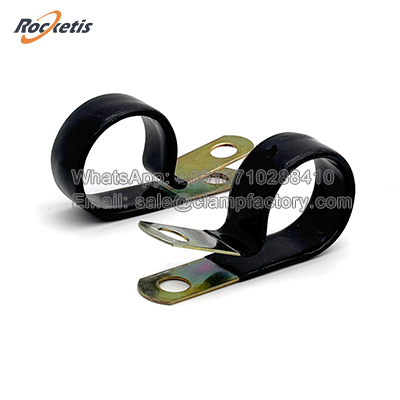

Vinyl Coated P-Type Hose Clamps are versatile fastening devices used to secure hoses, tubes, cables, and wire bundles. They are characterized by a P-shaped metal clamp fully encapsulated in a durable vinyl (PVC) coating, combining mechanical strength with enhanced protection and insulation.
Key Features of vinyl coated hose clamps
Core Material:
The clamp is typically made from carbon steel or sometimes stainless steel, providing structural strength and rigidity.
Vinyl Coating (Plasti-Dip / PVC Dip):
The entire metal clamp is immersed in a fluidized vinyl powder or PVC coating and then cured, creating a full-body plastic encapsulation. This coating is usually 0.5–1.5 mm thick and available in multiple colors (black, gray, blue, red, etc.).
Design:
P-shaped loop for 180-degree support.
Integrated mounting tab with a pre-punched hole, also coated.
Smooth, continuous plastic surface with no exposed metal.
Fastening:
Installed using a screw, bolt, or zip-tie through the coated mounting hole. The coating does not interfere with assembly.
Advantages of vinyl coated hose clamps
Superior Corrosion Resistance: The vinyl coating completely seals the metal from moisture, chemicals, and oxidation—ideal for humid, wet, or mildly corrosive environments.
Excellent Insulation: Electrically insulates the clamp, preventing galvanic corrosion and protecting against short circuits in electrical applications.
Protection for Sensitive Surfaces: The soft, non-abrasive coating prevents scratches, wear, or vibration damage to hoses, wires, or painted surfaces.
Vibration Dampening: Offers better noise and vibration reduction than bare metal clamps (though less than rubber-lined types).
UV & Weather Resistance: Vinyl/PVC resists sunlight degradation and weathering better than many rubber linings.
Aesthetic & Color-Coding: Available in colors for organization, labeling, or matching equipment.
Applications
Automotive & Marine: Engine bay wiring, fuel lines, coolant hoses (where abrasion and corrosion are concerns).
Outdoor Equipment: Irrigation lines, outdoor lighting, solar panel wiring.
Electrical Enclosures: Securing cable bundles in control panels without risk of short circuits.
HVAC & Plumbing: Insulated piping, drain lines, ductwork supports.
Consumer Products: Bicycles, furniture, fitness equipment—anywhere a clean, non-marring clamp is needed.
FAQ of vinyl coated hose clamps
Q: What are the benefits of Vinyl coating over Rubber lining?
A: Vinyl coating is permanently bonded to the metal band through a dipping process, meaning it won't slip off or degrade as quickly as loose rubber liners in high-vibration or marine environments. It also offers a slimmer profile for tight spaces.
Q: Can vinyl coated clamps be used in high-heat areas?
A: Vinyl (PVC) is excellent for standard environments up to 80°C (176°F). For extreme engine bay heat exceeding this, we recommend our [Plain Metal P-Clips] or specialized high-temp liners.
Q: Is the coating resistant to oils and chemicals?
A: Yes, the vinyl coating provides good resistance to most common automotive oils, battery acids, and salt spray, making it ideal for under-chassis and marine applications.
