Band width: 20mm
Material: W4
Bolt: M6*45
Free running torque: 6 in-lbs (0.7 Nm)
Suggested installation torque: 77 in-lbs (9 Nm)

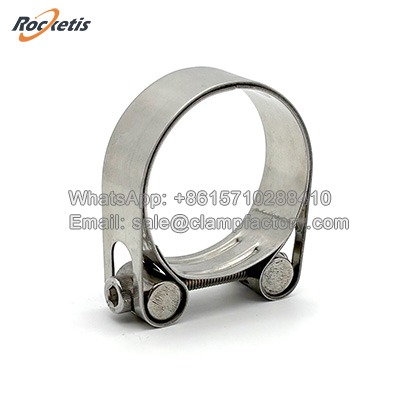

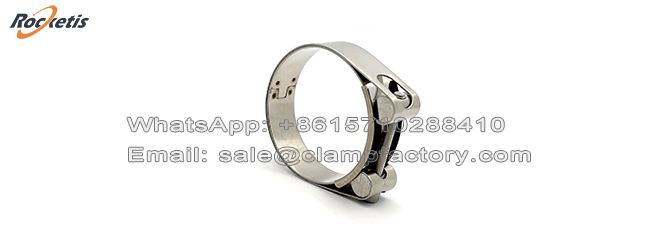

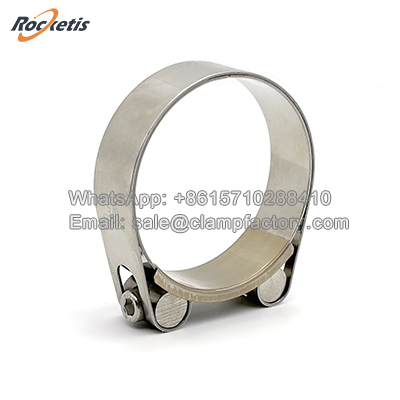

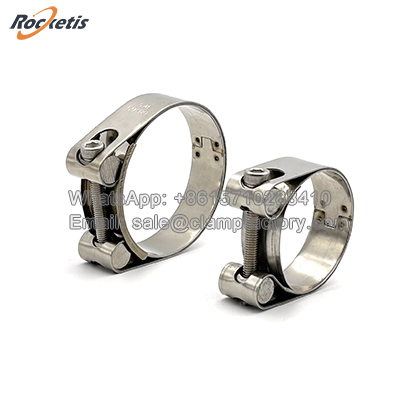

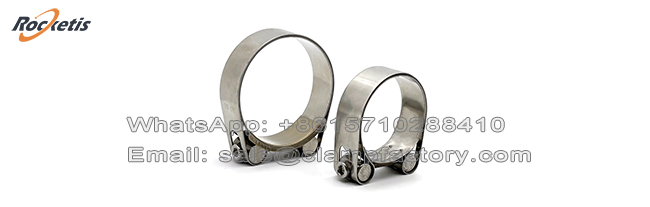

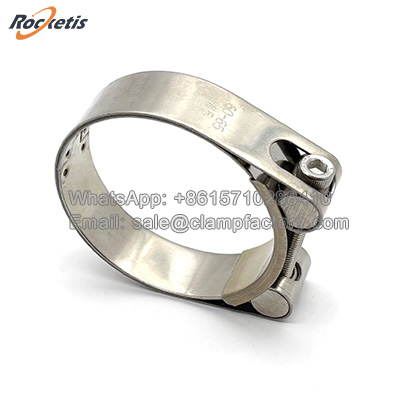

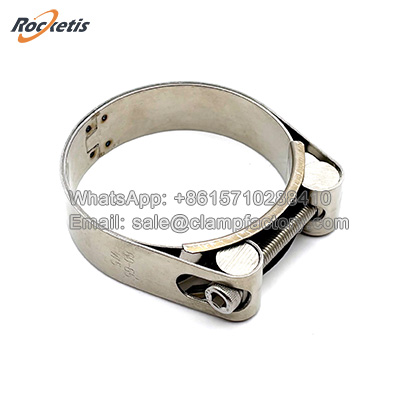

A double band heavy duty stainless steel hose clamps represent the pinnacle of hose clamping technology, engineered for the most demanding, high-pressure, and critical applications. Its unique double-band construction sets it apart as a premium, heavy-duty fastening solution.
Material:
W4 - All parts SS301/304
W5 - All parts SS316
Sizes Table
| Part No | Size | Part No | Size | |
| SSHSW19 | 35-45 | SHSW105 | 100-105 | |
| SHSW45 | 40-45 | SHSW110 | 105-110 | |
| SHSW55 | 50-55 | SHSW115 | 110-115 | |
| SHSW60 | 55-60 | SHSW120 | 115-120 | |
| SHSW65 | 60-65 | SHSW125 | 120-125 | |
| SHSW70 | 65-70 | SHSW130 | 125-130 | |
| SHSW75 | 70-75 | SHSW135 | 130-135 | |
| SHSW80 | 75-80 | SHSW140 | 135-140 | |
| SHSW85 | 80-85 | SHSW145 | 140-145 | |
| SHSW90 | 85-90 | SHSW150 | 145-150 | |
| SHSW95 | 90-95 | SHSW155 | 150-155 | |
| SHSW100 | 95-100 | SHSW160 | 155-160 |
Key Features of double band heavy duty stainless steel hose clamps
Double Band Construction:
This is the core innovation. Instead of a single strip of metal, the clamp features two concentric, overlapping bands of high-quality stainless steel.
How it Works: When the screw is tightened, the two bands slide against each other. This design allows for a much larger radial contraction and a wider range of adjustment compared to a single-band clamp of a similar size.
Super Strong & Reinforced Housing:
The housing that contains the worm gear is typically a heavy-duty, forged or cast component, often from stainless steel, designed to withstand immense torque without cracking or deforming.
It securely captures both bands, distributing the massive clamping force evenly.
High-Torque Single Bolt Mechanism:
Like other heavy-duty clamps, it uses a large hex head bolt (e.g., 7mm or 8mm) that can be tightened with a socket wrench or an Allen key.
This mechanism allows for the application of extreme torque to achieve the clamp's full potential.
Premium Stainless Steel Material:
Manufactured from AISI 304 or 316 stainless steel, ensuring exceptional resistance to rust, corrosion, and chemicals, making it suitable for harsh environments like marine, chemical processing, and offshore industries.
FAQ of Double Band Heavy Duty Stainless Steel Hose Clamps
Q: Are these heavy duty clamps suitable for marine environments?
A: Yes, our W4 (SS304) and W5 (SS316) series are specifically designed for high-salt and corrosive environments, offering maximum rust protection.
Q: Can I customize the band width for specific industrial needs?
A: As a manufacturer, Tianjin Rocketis supports OEM/ODM services. We can customize the thickness, width, and bolt strength according to your pressure requirements.
