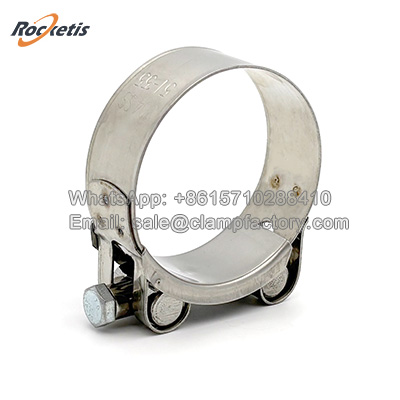

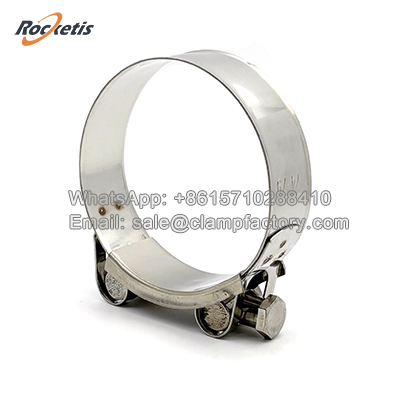

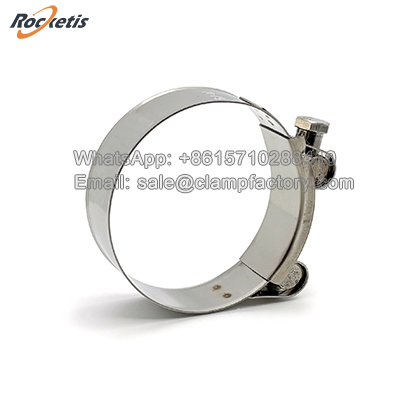

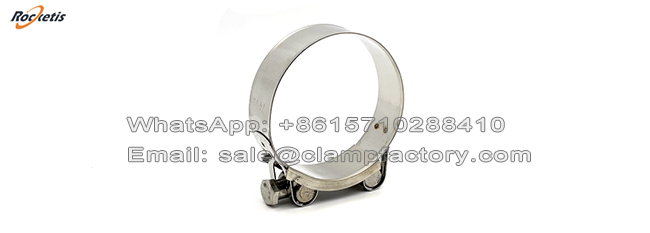

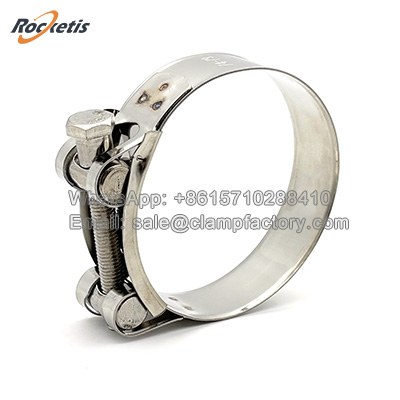

Heavy Hose Clamp Bolt Clamp

The Single Bolt Heavy Hose Clamp is a high-performance clamping device designed to secure hoses onto rigid fittings (such as pipes, barbs, or nipples) in demanding industrial, automotive, and marine applications. It is renowned for its exceptional strength, durability, and ability to maintain a secure, leak-proof seal under high pressure, vibration, and temperature extremes.

Material of Heavy Hose Clamp

W1-Steel with zinc plated

For high strength and moderate corrosion resistance.

W2 - Band and bridge stainless steel 201 or 304, bolt, sleeve and shaft carbon steel with zinc/nickel plated

W4 - All parts stainless steel 201, 304 or 316

For excellent corrosion resistance in harsh environments.

How to Install and Tighten Heavy Hose Clamp

Slide the clamp onto the hose.

Push the hose firmly onto the fitting until it seats completely.

Position the clamp over the area of the hose that covers the fitting's barb or ridge.

Hand-tighten the T-bolt until the clamp is snug.

Using a wrench or socket, apply final torque in small increments. It is crucial not to over-tighten, as this can damage the hose, strip the threads, or even break the clamp.

Key Features of Heavy Hose Clamp

Single Bolt T-Bar Mechanism: This is the defining feature. The clamp uses a single, large-diameter bolt (often with a T-bar head for easy hand-tightening) that draws the band ends together. This mechanism provides immense tightening force and is less prone to slipping than worm gears.

Heavy-Duty Band: The band is significantly thicker and wider than that of a standard hose clamp. This provides superior radial force distribution, preventing the hose from collapsing or bulging under the clamp and ensuring a 360-degree seal.

Interlocking Housing: The ends of the band are secured within a forged or stamped steel housing. This housing is engineered to withstand the high torque applied to the bolt without bending or failing.

Common Applications

Single bolt heavy duty hose clamps are used wherever a secure, fail-safe connection is paramount:

Automotive & Diesel Engines: Charge air coolers, turbocharger piping, heavy-duty radiator hoses, and hydraulic lines.

Industrial Machinery: High-pressure hydraulic systems, pneumatic lines, coolant and lubrication systems.

Marine & Shipbuilding: Seawater cooling lines, fuel lines, and exhaust systems.

Agricultural Equipment: Tractors, combines, and irrigation systems.

HVAC Systems: Large-diameter ducting and refrigerant lines.
